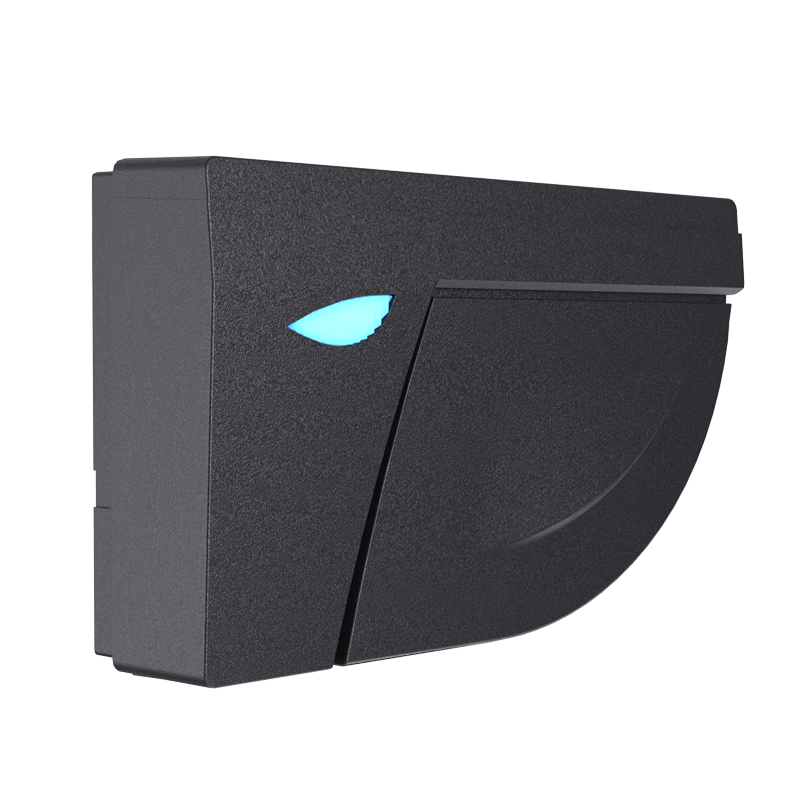

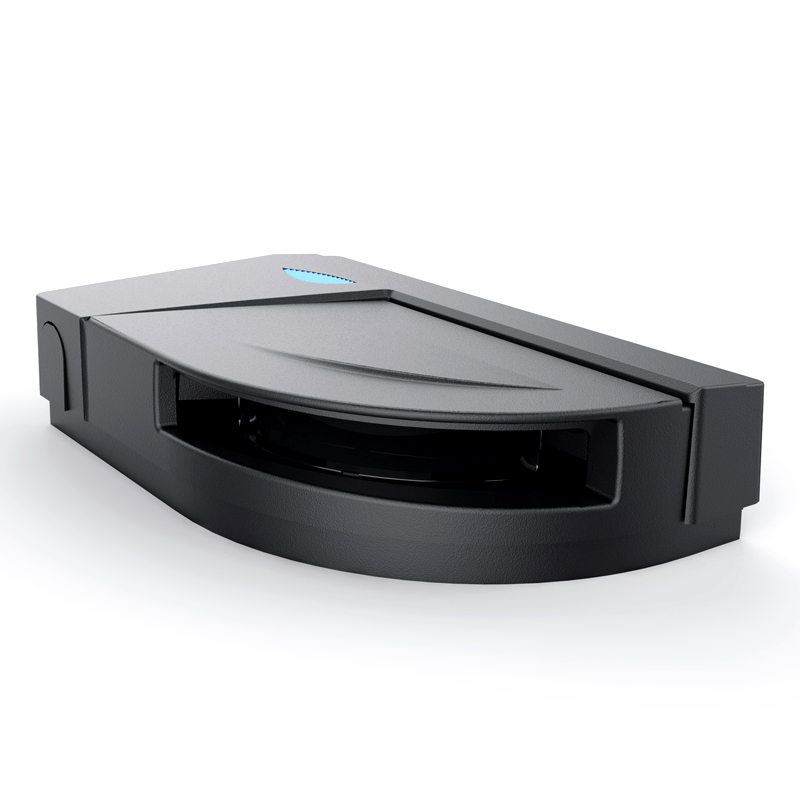

SafeScan Automatic Swing Door Sensor – Advanced Laser Safety for Seamless Door Operation

Enhance safety, precision, and convenience with the SafeScan sensor, an advanced laser-based presence detection system engineered specifically for automatic swing doors. Designed with cutting-edge time-of-flight technology, SafeScan ensures precise motion detection in both door wing and pinch zone areas, providing reliable operation in high-traffic environments such as hospitals, airports, commercial buildings, and public institutions.

Key Features

• Dual-Zone Safety Protection

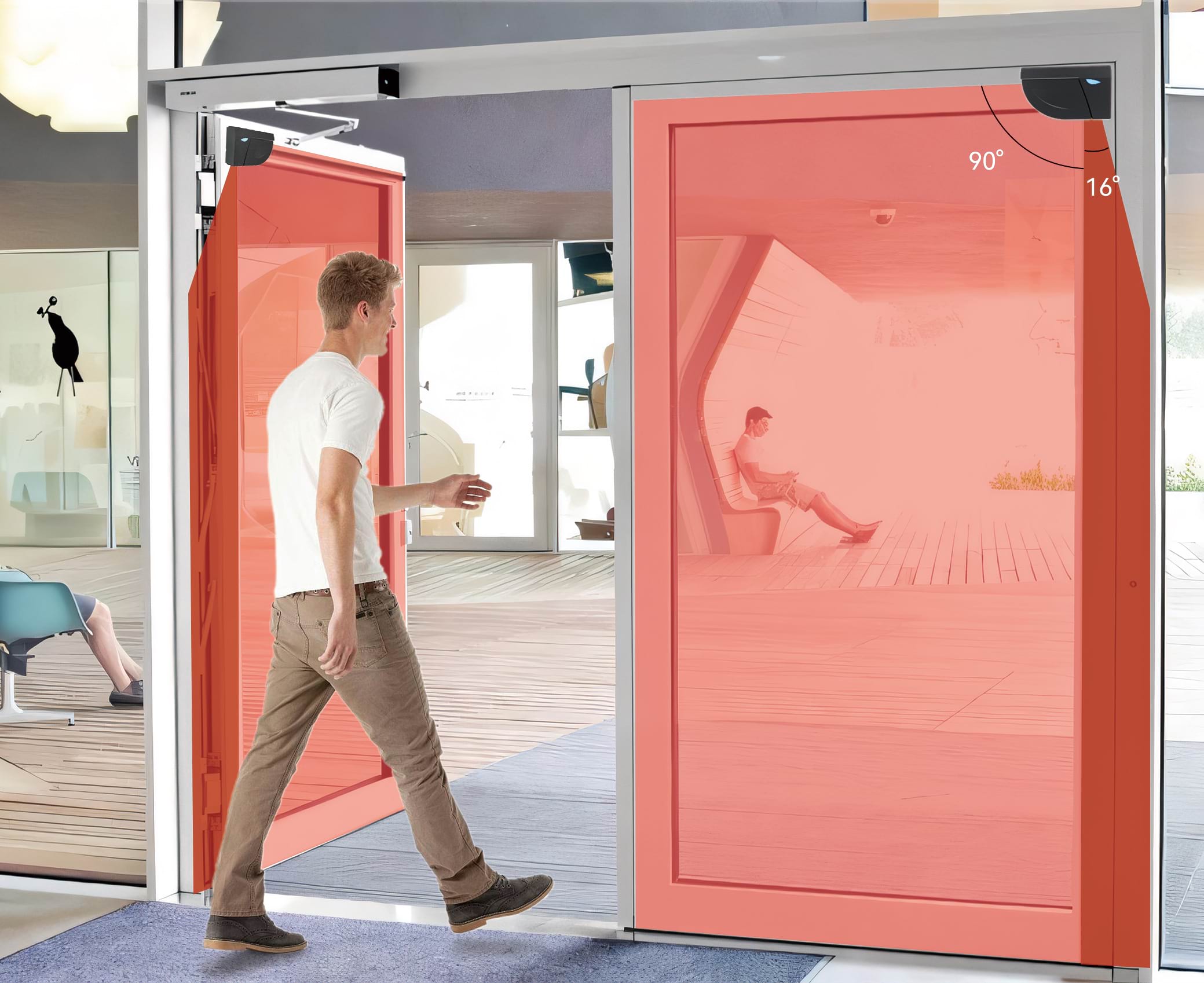

  SafeScan safeguards both the door wing area and the hinge (pinch) zone, reducing the risk of accidental impact. With angular resolutions as fine as 1.3° (wing) and 0.2° (pinch), even small objects are reliably detected.

• High-Precision Laser Detection
  Utilizing infrared laser time-of-flight measurement, the sensor offers a detection range of up to 4 meters diagonally. This guarantees accurate presence sensing with minimal false triggers.

• Fast Response Time
  The system delivers near-instantaneous reaction, with a maximum response time of 50 ms for door wing safety and 90 ms for pinch zone safety, ensuring smooth and safe door operation.

• Adjustable and Intelligent Configuration
  With DIP-switch customization, remote control support, and auto teach-in mode, installers can easily adapt the sensor to different environments, door speeds, and sensitivity requirements.

• Robust Build and Versatile Installation
  Built with durable PC+ABS materials and rated IP54, the SafeScan sensor operates reliably in temperatures from -30°C to +60°C. Its compact size and flexible mounting options make it suitable for a wide variety of architectural settings.

Technical Specifications at a Glance

Easy Setup and Maintenance

The SafeScan system includes intuitive installation steps, a clear LED indicator for diagnostics, and master-slave configuration for dual-wing door protection. A built-in service mode allows for hassle-free maintenance and adjustments without disrupting door operation.

Ideal For:

• Healthcare facilities requiring maximum safety compliance

• Airports and transportation hubs with high foot traffic

• Retail and commercial buildings seeking automation and accessibility

• Government buildings or public access points requiring dependable motion sensing

Why Choose SafeScan?

With its precise detection zones, intelligent configuration options, and durable build quality, SafeScan offers the performance and reliability trusted by professionals worldwide. Whether you're upgrading an existing door system or specifying safety sensors for a new installation, SafeScan delivers superior results—safely and efficiently.

Installation Details
