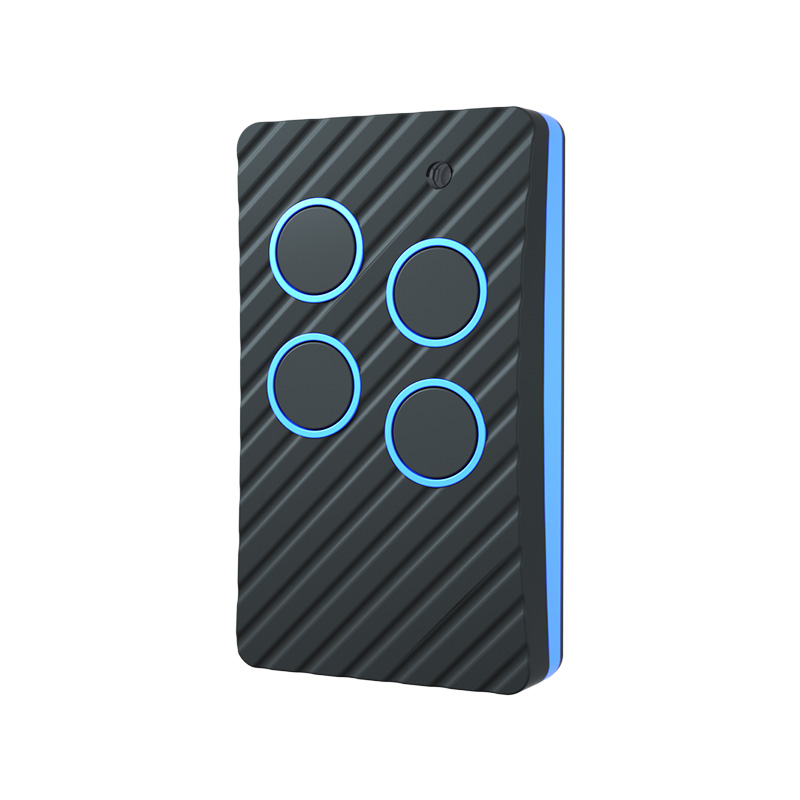

In our increasingly connected world, remote controls play a vital role in conveniently operating various devices, from garage doors to home automation systems. One common type of remote control operates at a frequency of 433 MHz. Have you ever wondered how a 433 MHz remote control works? In this article, we will explore the principles behind the operation of a 433 MHz remote control and shed light on its functionality.

Understanding Radio Frequencies:

To comprehend the workings of a 433 MHz remote control, it's essential to grasp the concept of radio frequencies. Radio frequency refers to the range of electromagnetic waves within which signals can be transmitted and received wirelessly. These frequencies are divided into various bands, and one such band is the 433 MHz band.

Signal Transmission:

At its core, a 433 MHz remote control works by transmitting signals wirelessly to a receiver unit that is connected to the device being controlled. The remote control consists of a circuit board that includes a transmitter module operating at the 433 MHz frequency.

When you press a button on the remote control, it triggers an electrical signal that is sent to the transmitter module. The module then converts the electrical signal into a radio signal at the designated frequency of 433 MHz.

Radio Signal Propagation:

The radio signal generated by the remote control transmitter travels through the air in the form of electromagnetic waves. These waves propagate through free space and can penetrate obstacles to reach the intended receiver unit.

Receiver Unit and Signal Decoding:

The receiver unit, usually located near the device being controlled, is designed to receive the radio signals transmitted by the remote control. It contains a receiver module tuned to the 433 MHz frequency. The receiver module picks up the radio signal and converts it back into an electrical signal.

The electrical signal is then decoded by the receiver unit, which interprets the signal based on pre-programmed instructions. Once the receiver unit has deciphered the signal, it triggers the desired action, such as opening a garage door, activating a home security system, or controlling other electronic devices.

Advantages of 433 MHz Remote Controls:

The use of 433 MHz remote controls offers several advantages. The 433 MHz frequency provides a good balance between signal range and interference resistance. It allows for a relatively long transmission range, making it suitable for both indoor and outdoor applications. Additionally, the 433 MHz band is commonly allocated for low-power devices, which helps minimize potential interference from other electronic devices operating at different frequencies.

Conclusion:

A 433 MHz remote control operates by transmitting signals wirelessly at the 433 MHz frequency. The remote control sends radio signals to a receiver unit, which decodes the signals and triggers the desired actions. Understanding the principles behind the operation of a 433 MHz remote control helps us appreciate the convenience and versatility it offers in controlling various devices wirelessly.
